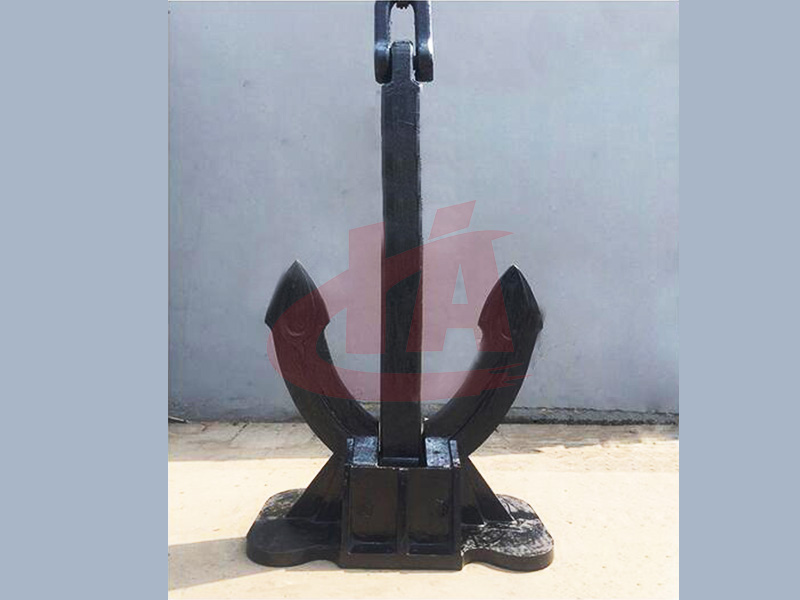

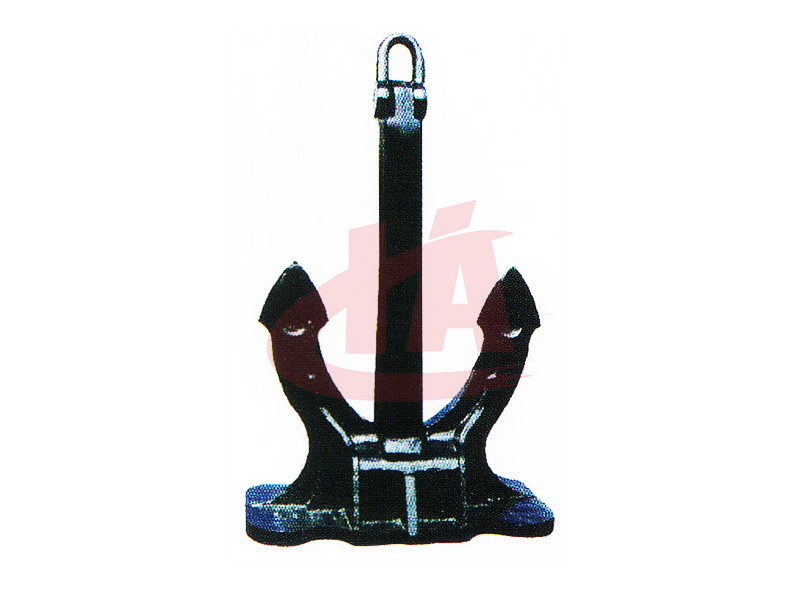

Spek Anchor

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail

名义重量

NOMINAL

WEIGHT(KG)

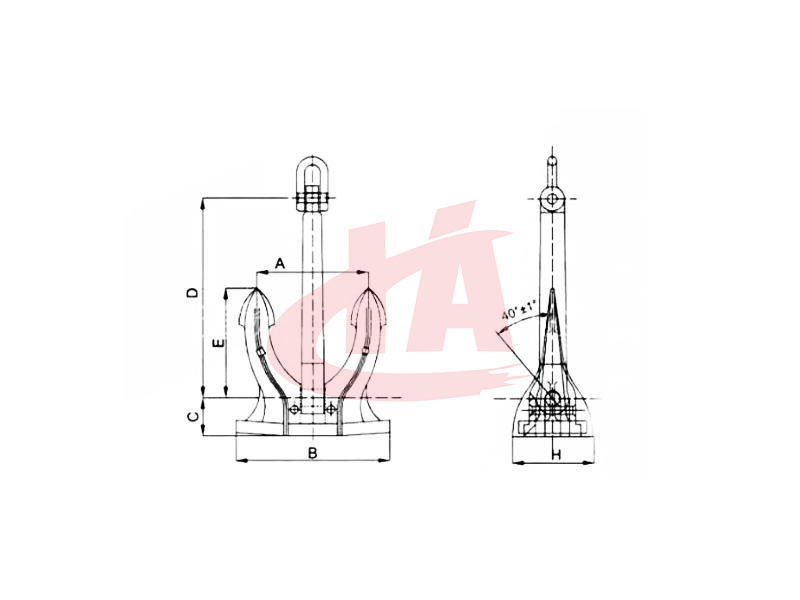

尺寸SIZE(mm)

A

B

C

D

F

420

1080

600

180

823

431

500

1170

650

196

900

450

570

1170

650

196

900

475

660

1260

700

210

960

486

780

1355

750

225

1032

519

900

1440

800

240

1100

547

1020

1530

850

252

1170

573

1140

1620

900

268

1240

591

1290

1710

900

268

1240

620

1440

1710

950

279

1300

640

1590

1710

950

279

1378

671

1740

1800

1000

300

1454

689

1920

1850

1050

312

1454

704

2100

1890

1050

312

1454

717

2280

2010

1050

312

1514

736

2460

2010

1100

324

1584

764

2640

2070

1150

352

1584

794

2850

2070

1150

352

1650

804

3060

2160

1200

360

1650

820

3300

2155

1200

360

1650

834

3540

2350

1200

360

1850

834

3780

2430

1350

393

1850

880

4050

2430

1350

393

1926

917

4320

2520

1400

413

1926

917

4590

2520

1400

413

1926

951

4890

2520

1400

413

1926

954

5250

2610

1450

414

2000

964

5610

2610

1450

414

2000

981

6000

2700

1500

446

2060

1006

6450

2700

1500

446

2060

1028

6900

2790

1550

456

2138

1034

7350

2790

1550

456

2138

1062

7800

2920

1550

456

2138

1091

8300

3060

1700

510

2332

1126

8700

3060

1700

510

2332

1156

9300

3060

1700

510

2332

1168

9900

3160

1700

510

2332

1188

10500

3190

1770

531

2440

1188

11100

3290

1770

531

2440

1212

11700

3390

1770

531

2440

1237

12300

3440

1910

573

2632

1279

12900

3440

1910

573

2632

1279

13500

3440

1910

573

2632

1316

14100

3440

1910

573

2632

1353

14700

3690

2050

615

2824

1369

15400

3690

2050

615

2824

1369
