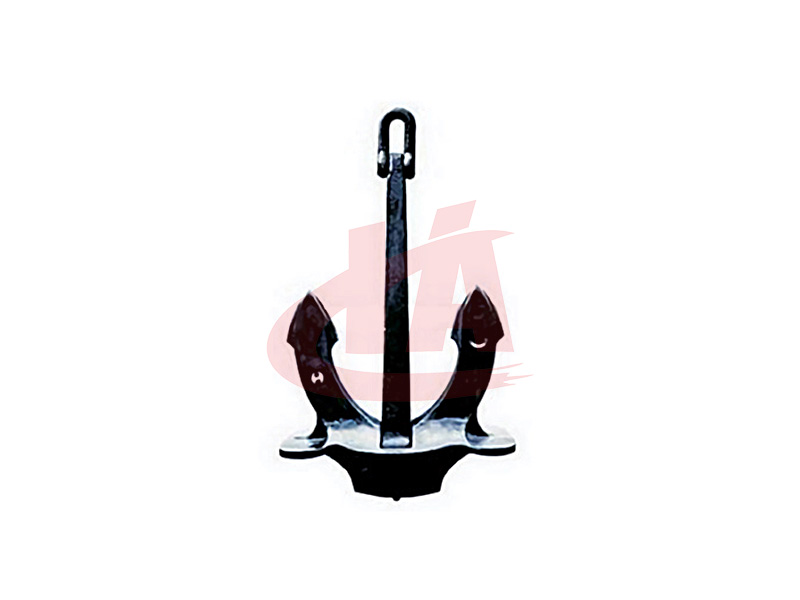

Hall Anchor

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail

名义重量

NOMINAL

WEIGHT(KG)

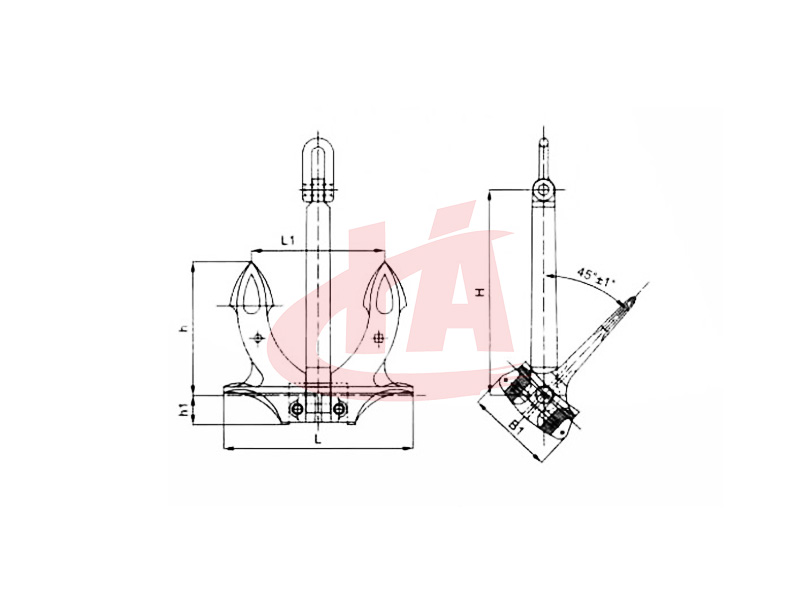

尺寸SIZEmm

H

h

h1

L

L1

B1

Type A

Type B

Type C

420

1160

1160

946

660

145

946

660

434

480

1222

1222

986

690

152

988

690

481

570

1355

1355

1042

732

161

1042

732

506

660

1356

1356

1093

769

169

1096

769

535

780

1506

1506

1170

813

178

1160

813

560

900

1580

1580

1215

855

188

1220

855

560

1020

1645

1645

1268

855

188

1220

855

605

1140

1705

1705

1316

926

203

1319

926

584

1290

1778

1778

1378

891

195

1268

891

630

1440

1844

1844

1448

965

203

1379

965

677

1590

1906

1906

1511

1035

226

1475

1035

698

1740

1966

1966

1571

1068

234

1517

1068

722

1920

2031

2031

1602

1104

241

1568

1104

732

2100

2093

2093

1651

1120

245

1560

1120

763

2280

2150

2150

1716

1165

225

1657

1165

784

2460

2207

2207

1785

1194

262

1700

1194

796

2640

2259

2259

1843

1222

265

1730

1222

822

2850

2318

2318

1890

1253

275

1787

1253

841

3060

2374

2374

1935

1283

282

1832

1283

862

3300

2432

2432

1985

1317

288

1880

1317

883

3540

2490

2490

2032

1349

295

1926

1394

902

3780

2547

2547

2077

1376

302

1965

1376

924

4050

2610

2610

2125

1406

309

2008

1406

943

4320

2695

2695

2171

1435

316

2051

1435

962

4590

2712

2712

2216

1465

332

2093

1465

962

4890

2769

2769

2263

1498

329

2135

1498

984

5000

2800

2800

2317

1510

332

2156

1510

992

5610

2899

2899

2369

1569

345

2234

1569

1031

6000

2965

2965

2422

1605

352

2284

1605

1054

6450

3037

3037

2482

1644

361

2340

1644

1080

6900

3100

3100

2538

1681

369

2393

1681

1105

7350

3100

3100

2592

1688

370

2400

1688

1109

7800

3235

3235

2644

1752

385

2493

1752

1152

8300

3363

3363

2699

1788

393

2545

1788

1176

8500

3355

3355

2742

1800

395

2565

1800

1184

9300

3430

3430

2804

1850

417

2632

1850

1226

9900

3502

3502

2863

1896

417

2699

1896

1248

10500

3571

3571

2920

1934

425

2752

1934

1273

11100

3638

3638

2975

1970

433

2803

1970

1297

11700

3702

3702

3028

2005

441

2853

2005

1320

12300

3764

3764

3079

2039

448

2901

2039

1342

12900

3824

3824

3128

2072

455

2947

2072

1363

13500

3882

3882

3176

2104

462

2992

2104

1384

14100

3939

3939

3222

2135

469

3036

2135

1404

14700

3994

3994

3267

2165

476

3078

2165

1424

15400

4056

3318

2199

2199

483

3126

2199

1446
