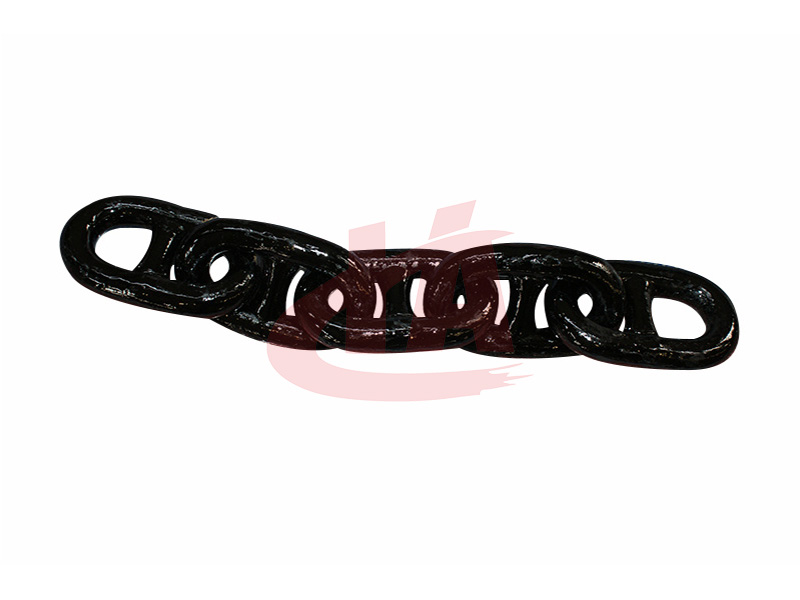

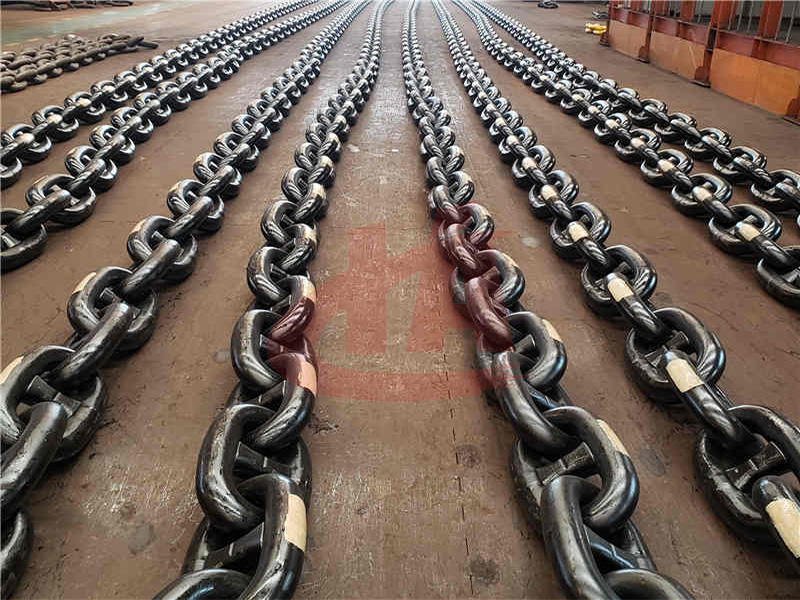

Anchor Chain

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail




有档锚链 链环尺寸(6*36D) 破断负荷 重量

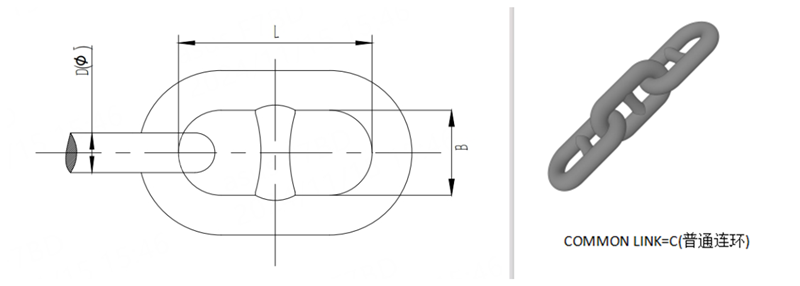

STUD LINK ANCHOR CHAIN, LINK SIZE(6*3.6D), BREAKING LOAD WEIGHT

直径

DIAM

ETER

链环尺寸

CHAIN LINK SIZE

一级有档锚链

AM1

U1 STUD LINK CHAIN

二级有档锚链

AM2

U2 STUD LINK CHAIN

三级有档锚链

AM3

U3 STUD LINK CHAIN

节重

APPROX.

WEIGHT

内长L

INSIDE

LENGTH

内宽B

INSIDE

WDTH

破断负荷

BREAKING LOAD

破断负荷

BREAKING LOAD

破断负荷

BREAKING LOAD

27.5M

MM

MM

MM

KN

KN

KN

KG

12.5

50

20

66

92

132

94.05

14

56

22.4

82

116

165

117.97

16

64

25.6

107

150

216

154.27

17.5

70

25

127

179

256

184.52

19

76

30.4

150

211

301

217.52

20.5

82

32.8

175

244

349

253

22

88

35.2

200

280

401

291.5

24

96

38.4

237

332

476

346.77

26

104

41.6

278

389

556

407

28

112

44.8

321

449

642

472.17

30

120

48

368

514

735

542.02

32

128

51.2

417

583

833

616.82

34

136

54.4

468

655

937

696.3

36

144

57.6

523

732

1050

780.45

38

152

60.8

581

812

1160

869.55

40

160

64

640

895

1280

963.6

42

168

67.2

703

981

1400

1062.32

44

176

70.4

769

1080

1540

1166

46

184

73.6

837

1170

1680

1274.35

48

192

76.8

908

1270

1810

1387.65

50

200

80

981

1370

1960

1505.62

52

208

83.2

1060

1480

2110

1628.55

54

216

86.4

1140

1590

2270

1756.15

56

224

89.6

1220

1710

2430

1888.7

58

232

92.8

1290

1810

2600

2025.92

60

240

96

1380

1940

2770

2168.1

62

248

99.2

1470

2060

2940

2314.95

64

256

102.4

1560

2190

3130

2466.75

66

264

105.6

1660

2310

3300

2623.5

68

272

108.8

1750

2450

3500

2785.75

70

280

112

1840

2580

3690

2950.75

73

292

116.8

1990

2790

3990

3209.52

76

304

121.6

2150

3010

4300

3478.75

78

312

124.8

2260

3160

4500

3663

81

324

129.6

2410

3380

4820

3951.47
