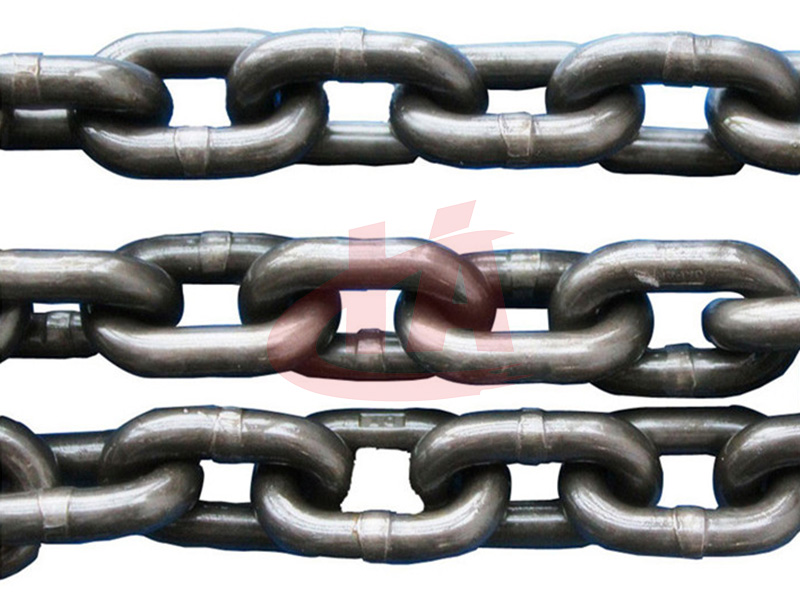

G80 Chain

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail

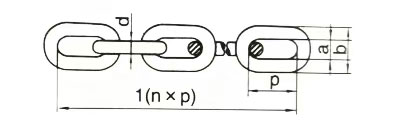

规格

SIZE

d×p

宽度

WIDTH

单位长度约重

APPROX.

WEIGHT

极限工作负荷

WORKING LOAD

LIMIT

试验负荷

TEST LOAD

最小破断负荷

BREAKING LOAD

MIN.

最小内宽

INSIDE WIDTH MIN.

a

最大外宽

OUTSIDE WIDTH

MAX.

b

MM

MM

MM

KG/M

T

KN

KN

6×18

7.5

21

0.79

1.1

27

45.2

7×21

9

24.5

1.07

1.5

37

61.6

8×24

10

28

1.38

2.0

48

80.4

10×30

12.5

35

2.20

3.2

76

125

11×43

12.6

36.5

2.33

3.8

92

154

12×36

15

42

3.10

4.6

109

181

12.5×38

15.5

42.2

3.30

4.9

117

196

13×39

16.3

46

3.80

5.0

128

214

14×42

18

49

4.13

6.3

150

250

14×50

17

48

4.00

6.3

150

250

15×46

20

52

5.17

7.0

168

280

16×48

20

56

5.63

8.0

192

320

16×49

24.5

59.5

5.71

8.0

192

320

16×64

23.9

58.9

5.11

8.0

192

320

18×54

23

63

6.85

10.0

246

410

18×64

21

60

6.60

10.0

246

410

19×57

23.7

63.2

7.70

11.3

270

450

20×60

25

70

8.60

12.5

300

500

22×65

28

74.2

10.70

15.3

366

610

22×66

28

77

10.20

15.3

366

610

22×86

26

74

9.50

15.3

366

610

24×72

32

82

12.78

18.0

432

720

24×86

28

79

11.60

18.0

432

720

26×78

35

91

14.87

21.3

510

850

26×92

30

86

13.70

21.3

510

850

30×90

38

105

19.60

28.3

678

1130

30×108

34

98

18.00

28.3

678

1130

32×96

40

106

22.29

32.2

772

1286

34×126

38

109

22.70

36.3

870

1450

34×102

46.5

121.5

25.50

36.3

870

1450

36×108

49.5

128.5

31.00

40.7

978

1630

38×137

42

121

29.00

45.3

1086

1810

38×114

52

136

32.00

45.3

1086

1810

42×126

55.5

144.5

38.60

55.4

1332

2200
