DIN 766 Link Chain

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail

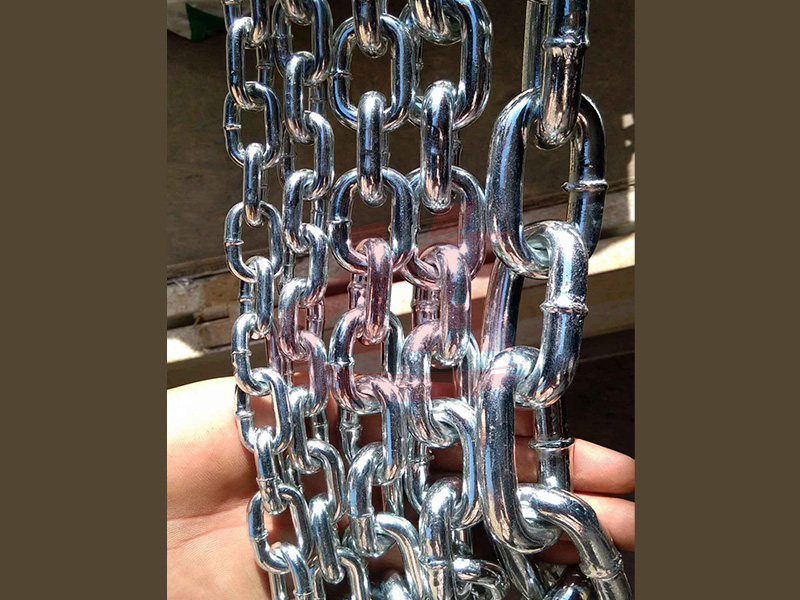

DIN 766 Link Chain

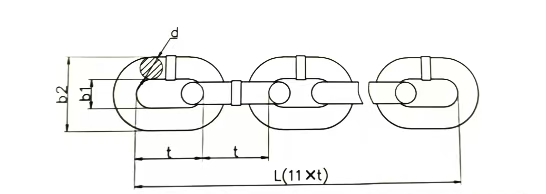

SIZE

d

INSTDE  LENGTH

t

INSIDE

WIDTH

b1

OUTSIDE

WIDTH

b2

LENGTH PER 11 LINKS

WEIGHT

PER M

MM

±MM

MM

±MM

-MM

MM

MM

MM

±MM

-MM

KG

2

0.2

12

0.2

0.2

3.5

7.5

132

1

0.5

0.07

3

0.2

16

0.2

0.2

4.2

11

176

1.4

0.7

0.16

4

0.2

16

0.3

0.2

5

13.7

176

2.1

1.1

0.32

5

0.2

18.5

0.4

0.2

6

17

203.5

2.4

1.2

0.5

6

0.2

18.5

0.4

0.2

7.2

20.2

203.5

2.4

1.2

0.8

7

0.3

22

0.4

0.2

8.4

23.8

242

3

1.4

1.1

8

0.3

24

0.4

0.2

9.6

27.2

264

3.2

1.5

1.4

9

0.4

27

0.5

0.3

10.8

30.6

297

3.6

1.8

1.8

10

0.4

28

0.5

0.3

12

34

308

3.7

1.9

2.2

11

0.4

31

0.5

0.3

13.2

37.4

341

4

2

2.7

12

0.3

36

0.6

0.3

14.4

40.8

396

4.4

2.2

2.1

13

0.5

36

0.6

0.3

15.6

44.2

396

4.6

2.4

3.8

14

0.6

41

0.7

0.4

16.8

47.6

451

5.4

2.7

4.4

16

0.6

45

0.8

0.4

19.2

54.4

495

6

3

5.7

18

0.9

50

0.8

0.4

21.6

61.2

550

6.6

3.3

7.3

19

0.4

53

0.9

0.4

22.8

64.6

583

7

3.7

7.97

20

1

56

1

0.5

24

68

616

7.4

3.7

9

22

1.2

62

1.1

0.5

26.4

75

682

8

4

11

23

1.2

64

1.1

0.5

27.6

78.2

704

8.4

4.2

12

26

1.3

73

1.2

0.6

31.2

88.4

803

9.6

4.8

15

28

1.4

78

1.3

0.65

33.8

95.2

858

10.2

5.1

18

30

1.5

84

1.4

0.7

41

102

924

11

5.5

19.5

32

1.6

90

1.5

0.75

43

108.8

990

11.8

5.9

23
