DIN763 Link Chain

Product Description:

Our factory can produce the stud and unstudded marine anchor chain of level Ⅰ, Ⅱ and Ⅲ with the Φ12.5mm-Φ66mm diameter, Φ6mm-Φ66 chain, Φ12.5mm-Φ66mm swivel, Φ13mm-Φ66mm joint shackle, Φ13mm-Φ65mm end shackle, Φ13mm-Φ70mm nonstandard anchor chain made of various material and specification, stainless chain, enlarged link, ring link, triangle link and ring hook, rigging, etc...


Product Detail

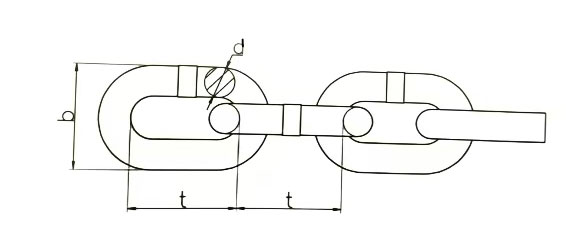

DIN763 Link Chain

SIZE d

INSIDE

LENGTH

t

OUTSIDE

WIDTH

b

WORKINH

LOAD

TEST LOAD

BREAKING

LOAD

WEIGHT

PER

M

MM

±MM

MM

±MM

MM

±MM

KG

N

N

KG

2

0.5

22

1

8

0.4

25

800

1250

0.06

2.5

0.5

24

1.1

10

0.5

40

800

2000

0.1

3

0.5

26

1.2

12

0.6

55

1050

3200

0.15

3.5

0.5

28

1.3

14

0.7

80

1540

3850

0.2

4

0.5

32

1.5

16

0.8

100

2500

6500

0.27

4.5

0.5

34

1.7

18

0.9

128

3000

8000

0.35

5

0.5

35

1.8

20

1

160

4000

10000

0.43

5.5

0.5

38.5

1.8

22

1.1

195

4200

10500

0.52

6

0.5

42

2

24

1.2

200

5000

12000

0.63

7

0.5

49

2.5

28

1.4

300

7500

19000

0.86

8

0.5

52

2.5

32

1.6

400

10000

25000

1.1

8.5

0.5

56

2.8

34

1.7

460

10200

25500

1.25

9

0.5

59

3

36

1.8

530

10500

32000

1.41

10

1

65

3.2

40

2

630

16000

40000

1.75

11

1

72

3.4

44

2

790

15800

47500

2.11

12

1

78

3.6

48

2.3

940

18800

56500

2.55

13

1

82

4

52

2.5

1000

25000

63000

2.95

16

1

100

5

64

3.2

1600

40000

100000

4.45

18

1

113

5.2

70

3.2

2120

42300

127000

5.65

19

1

119

5.6

72

3.4

2370

47300

142000

6.25

20

1

120

6

75

3.8

2500

50000

160000

7

22

1

127

6

82

4

3170

63300

190000

8.55

25

1

140

6.6

85

4.2

4090

81700

245000

10.9

28

1

152

7

96

4.7

6000

120000

300000

13.9

32

1

171

7.8

108

5.2

8000

160000

400000

18.2
